AutobusGW 30

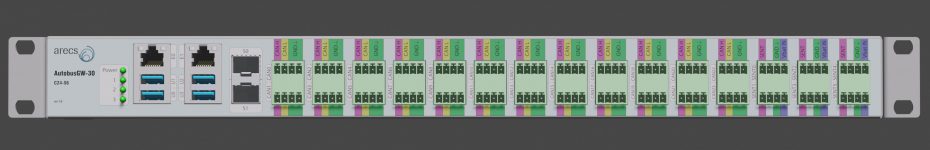

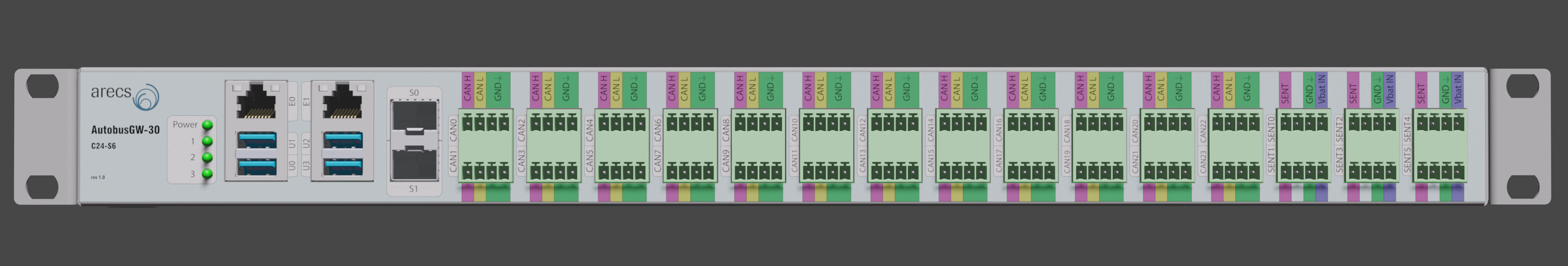

The AutobusGW 30 is an FPGA-based high-density Automotive Bus Ethernet Gateway capable of providing access for up to 30 Automotive Bus ports in a 1U compact and modular design. It is shown above in the variant offering 24 CAN/CANFD and 6 SENT ports.
High Performance
Under the hood is a Xilinx Ultrascale+ Zynq SoC featuring an FPGA with Quad Core ARM Cortex-A53 processors. The tight integration of ARM processors and FPGA allows high port density without compromising performance.
Modular Design
The AutobusGW is a modular platform. Every group of 6 front-panel interfaces are internally controlled by an IO-Module daughterboard implementing support for a particular Automotive Bus standard. It is therefore possible to configure the AutobusGW according to the customer’s needs. The following are sample configurations:
C30:
- 30 CAN/CANFD interfaces
C24-S6:
- 24 CAN/CANFD interfaces
- 6 SENT Interfaces
C18-L12:
- 18 CAN/CANFD interfaces
- 12 LIN Interfaces
C18-L6-S6:
- 18 CAN/CANFD interfaces
- 6 LIN Interfaces
- 6 SENT Interfaces
Please contact us for custom configurations.
Galvanically Isolated CAN Ports with Switchable Termination
The CAN ports offer galvanic isolation with one floating ground per port. The 120 Ohm Termination resistor is also dynamically switchable (using a true analog switch) via the software API.
Simple Configuration with REST API over Gigabit Ethernet
The configuration interface of the AutobusGW is a simple-to-use REST API. With regards to payload, a TCP socket is used per configured virtual CAN bus. Please refer to the User Guide for more information.
Extendable: Multibox Operation Mode
Using the second gigabit Ethernet port (e1), it is possible to let virtual CAN buses extend over multiple AutobusGW units. The CAN packets are broadcast on the second network interface, which allows all AutobusGW units to listen and process the packets. Using this option, it is possible to dynamically redefine many virtual CAN buses which extend over multiple physical AutobusGW units without any recabling.
Product Highlights
- Xilinx Ultrascale+ FPGA SoC
- Quad Core 64-bit ARMv8 Processors with 1.5GHz
- Dual Gigabit Ethernet Ports
- Runs SocketCAN over Linux for all CAN functions. Custom User Applications are possible.
- Dual SFP+ cages for 10G expansion for low-latency high-bandwidth applications
- 4 USB2/USB3 ports
- 1U form factor for high port density
Availability
The AutobusGW is currently available with configurations including CAN/CANFD, SENT and LIN 2.2 .
Roadmap
The following new interfaces are planned:
- Digital IO
- Analog IO
- Automotive Ethernet
